Multistage Centrifugal Pump Product Highlights
- Higher Pressure Output with Multiple Stages: The multi-stage design lets each rotor stage gradually add pressure, which helps the pump meet higher head needs in industrial, water supply, and pressure-boosting systems.
- Wide Flow and Head Selection: Different models of Multistage Centrifugal Pump let you mix and match flow rate, head, and motor power, which makes it easy to meet the needs of different systems.
- Space-Saving Vertical Installation: The vertical structure takes up less space during installation while keeping the pressure fixed, which makes it good for systems that don’t have a lot of room for equipment.
- Stable Operation Under Continuous Demand: Optimised hydraulic parts and well-balanced internal structures help keep the water delivery performance steady over time.
- Smart Control for Energy Management: YCNCDL(F) models with permanent magnet motors and variable frequency control can change their operating conditions automatically based on how much water is needed, which makes the system work better.
- Multiple Application Possibilities: Multistage centrifugal pumps can be used to give water to buildings, raise pressure, move water between industries, filter systems and do other tasks that need stable pressure performance.
Multistage Centrifugal Pump Supplier for High-Pressure Water Systems
When your system needs stable pressure output, higher head performance, and reliable water delivery, HunGerät Multistage Centrifugal Pumps can help. This series includes vertical multi-stage models and intelligent pump options that make it easier to handle applications that need consistent pressure performance while keeping operations running smoothly.
HunGerät Multistage Centrifugal Pumps can be used for everything from standard water supply systems to pressure boosting and industrial circulation projects. Our team can help you confirm the right models, technical requirements, and supply plans to make the process of finding a pump easier.

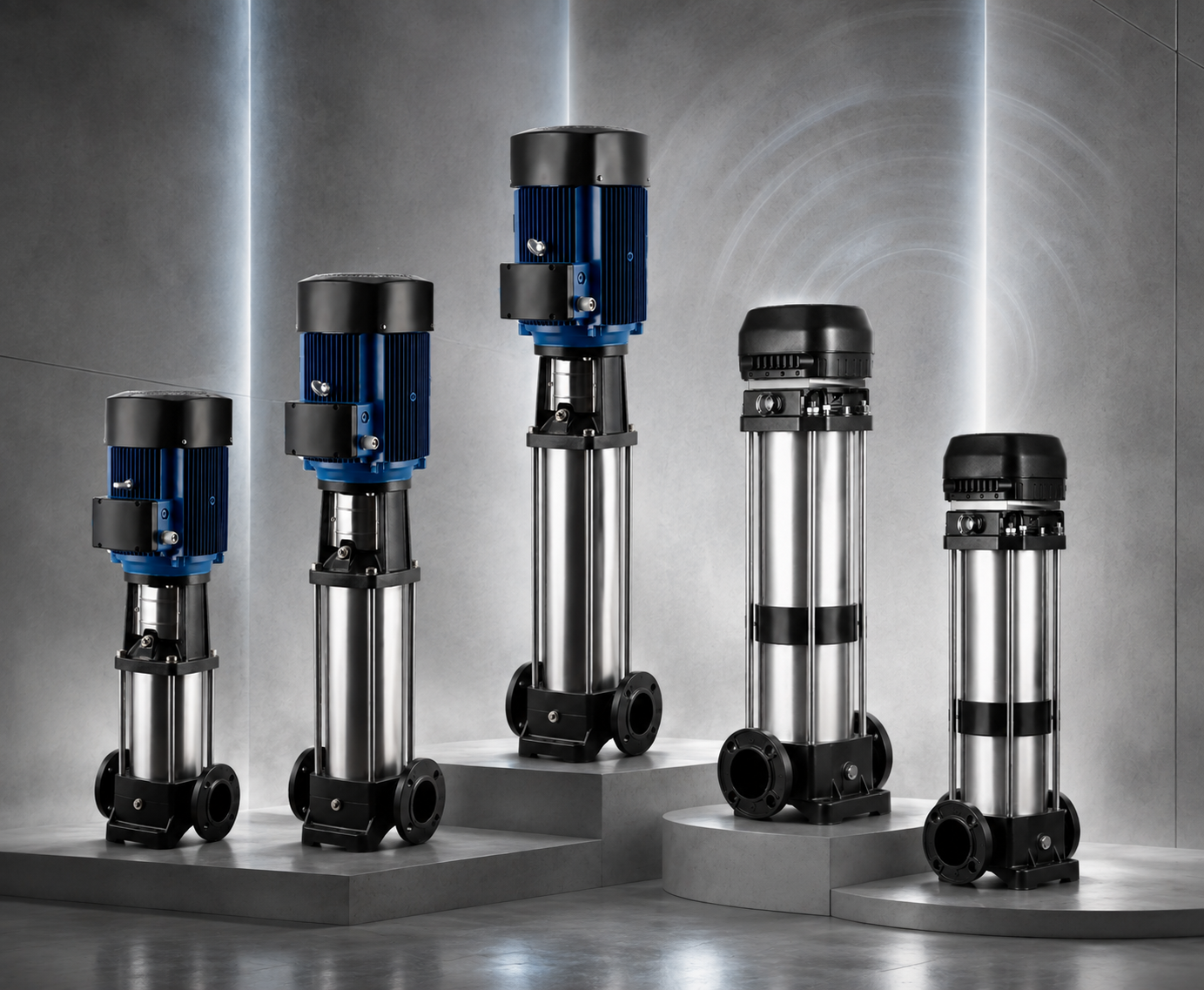

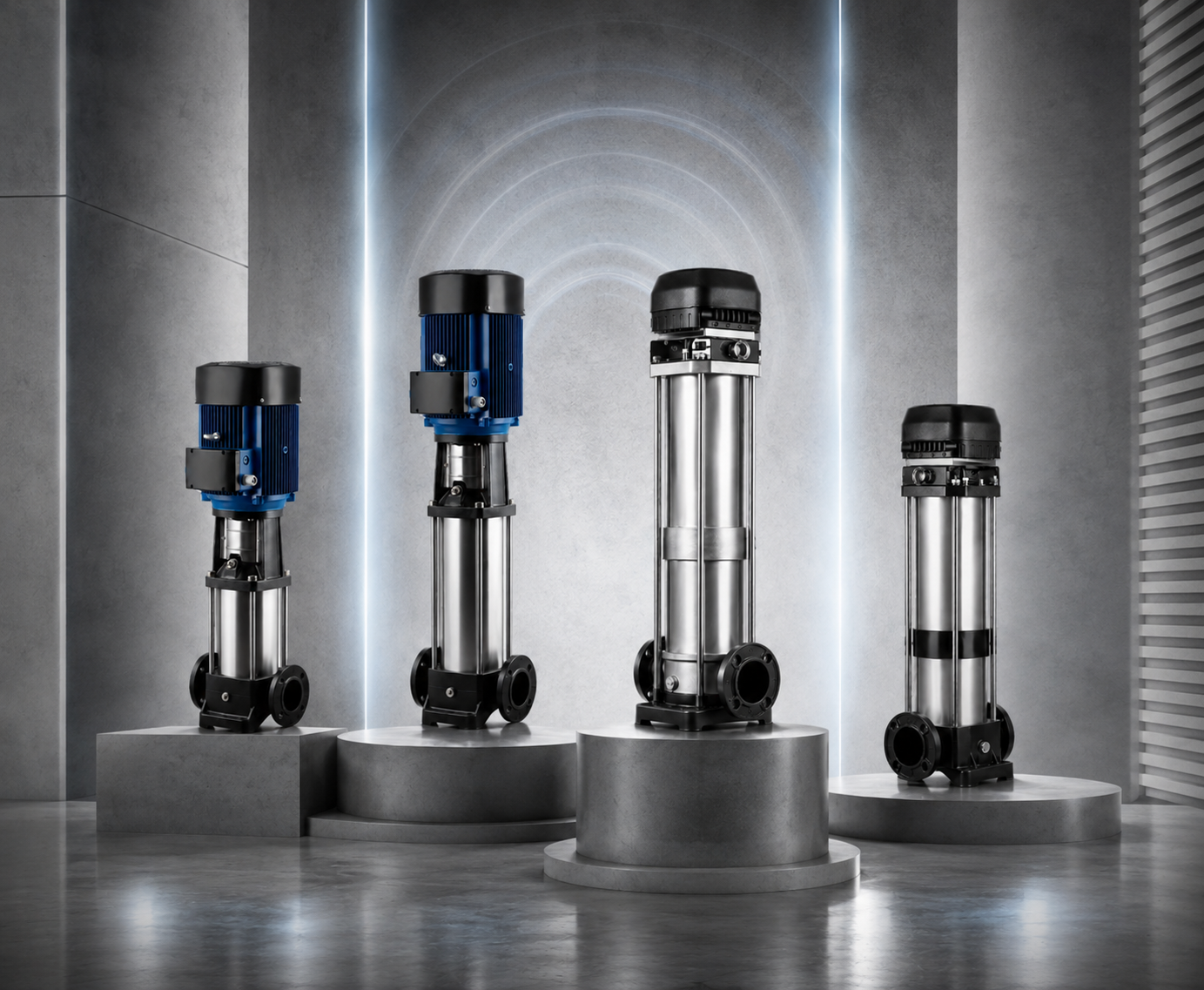

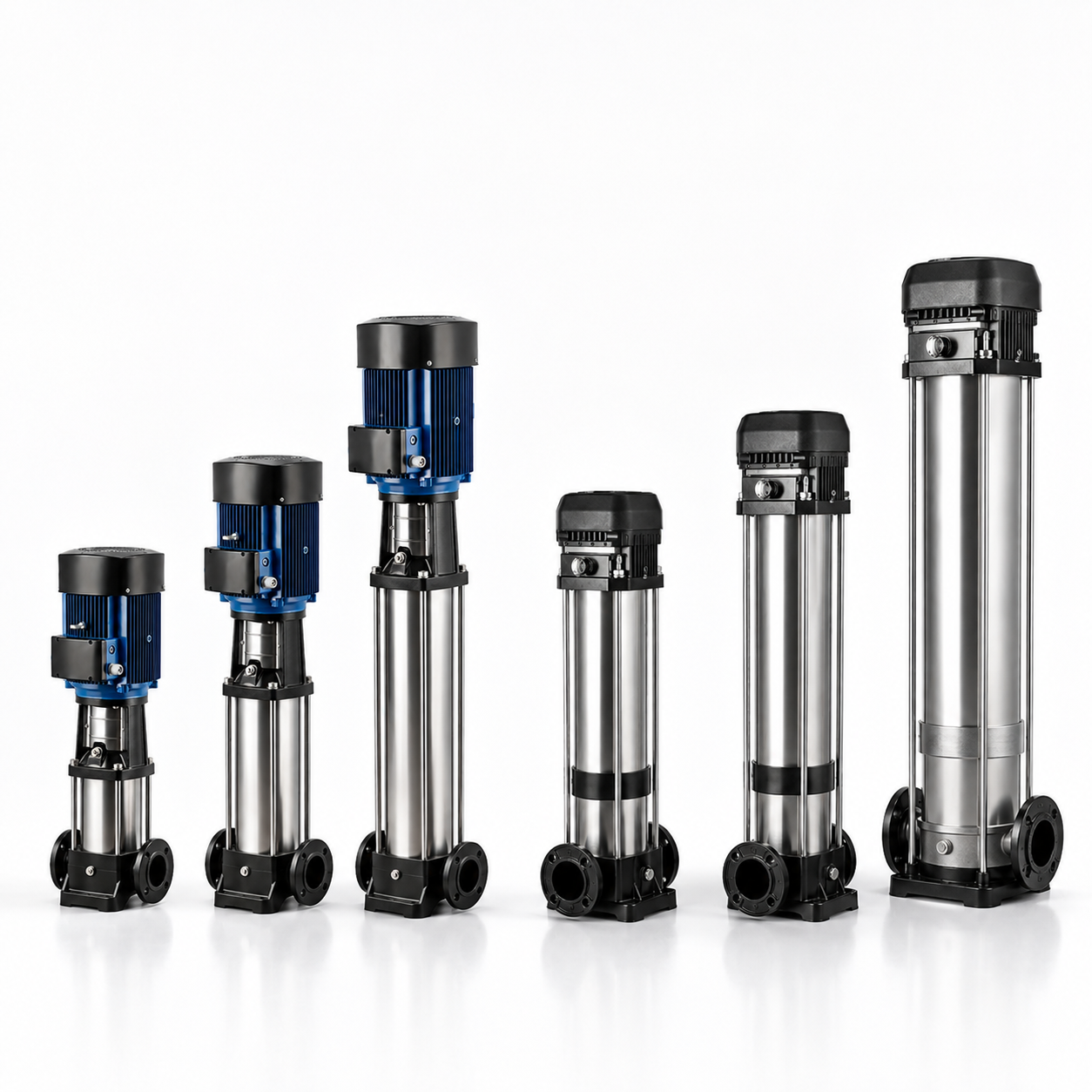

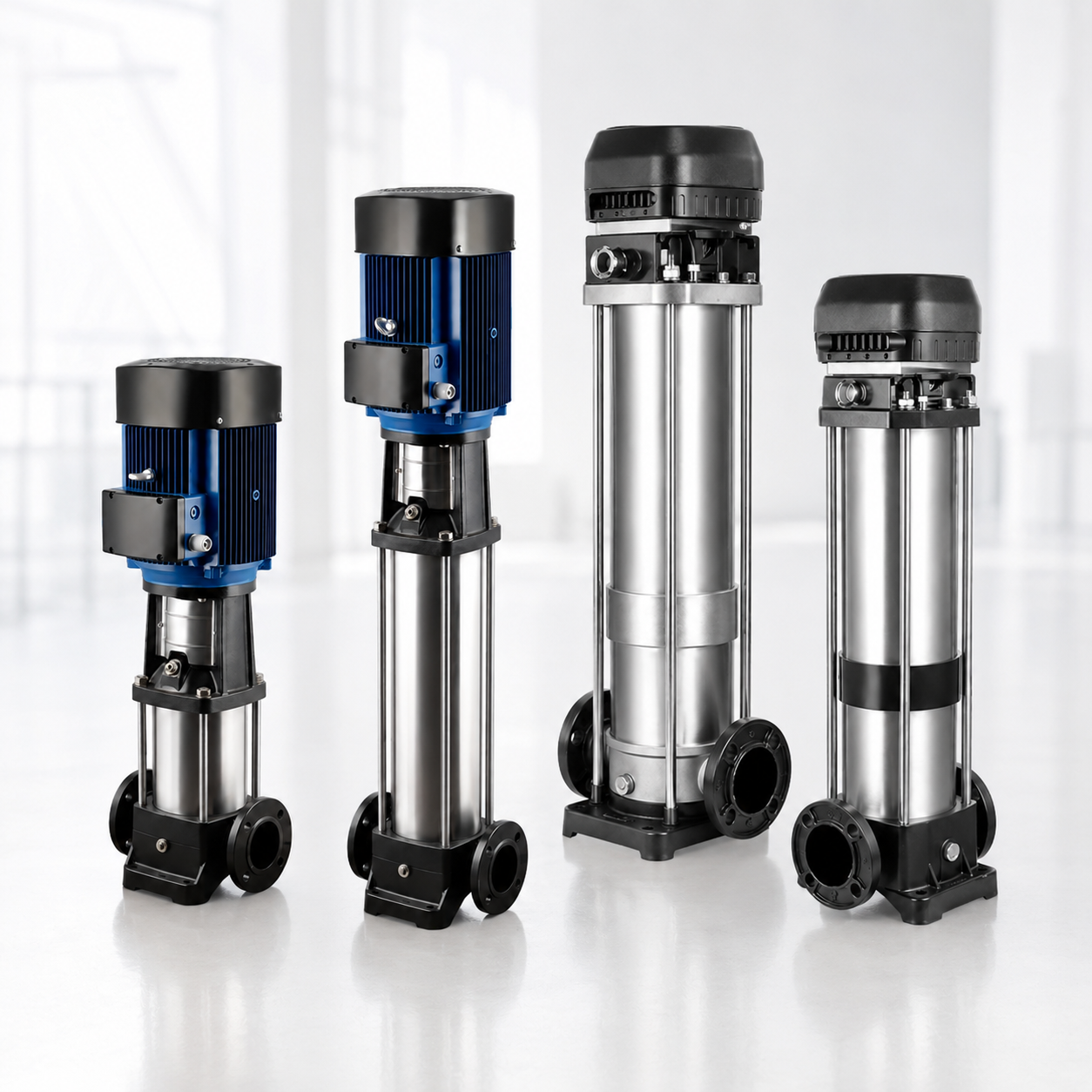

Multistage Centrifugal Pumps by Design

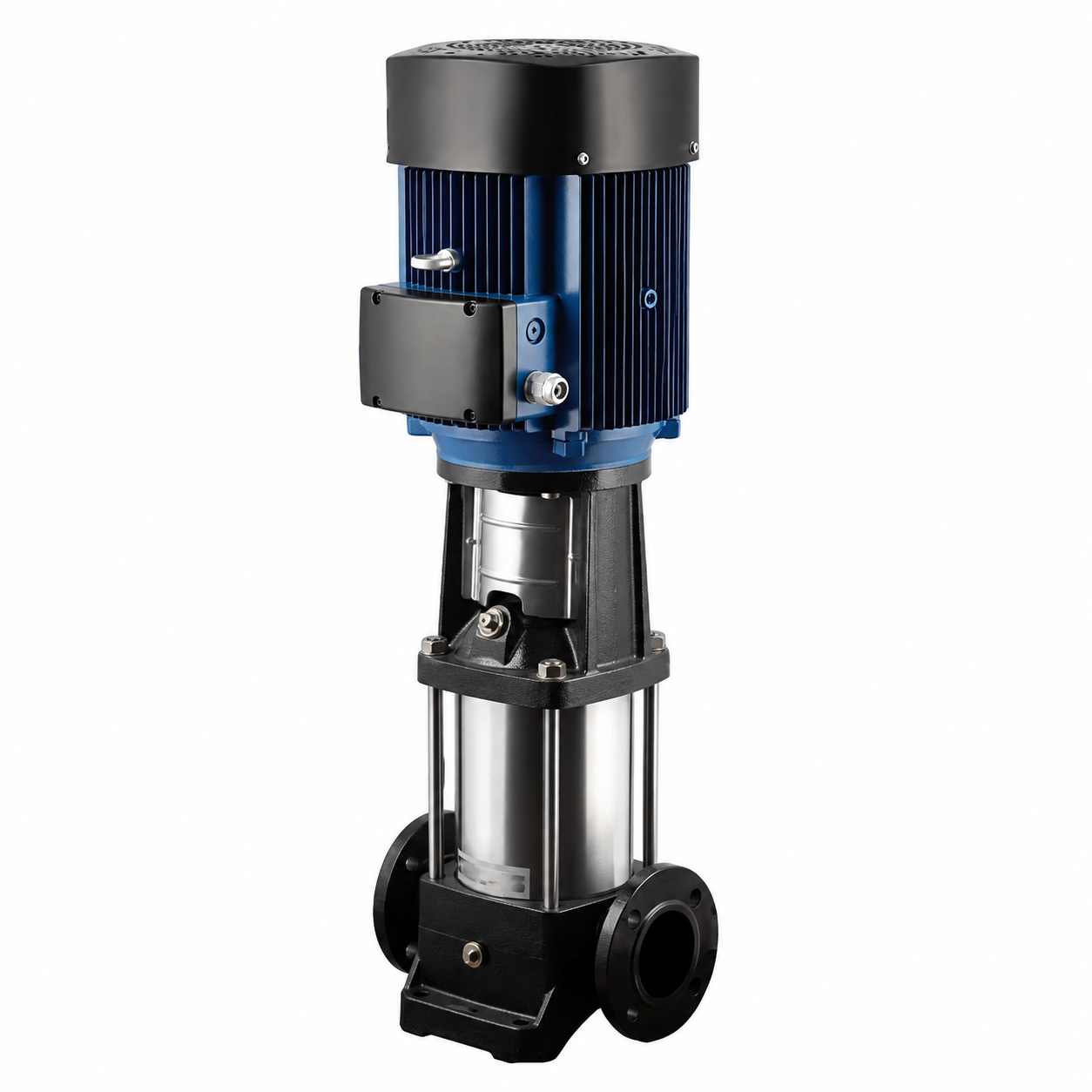

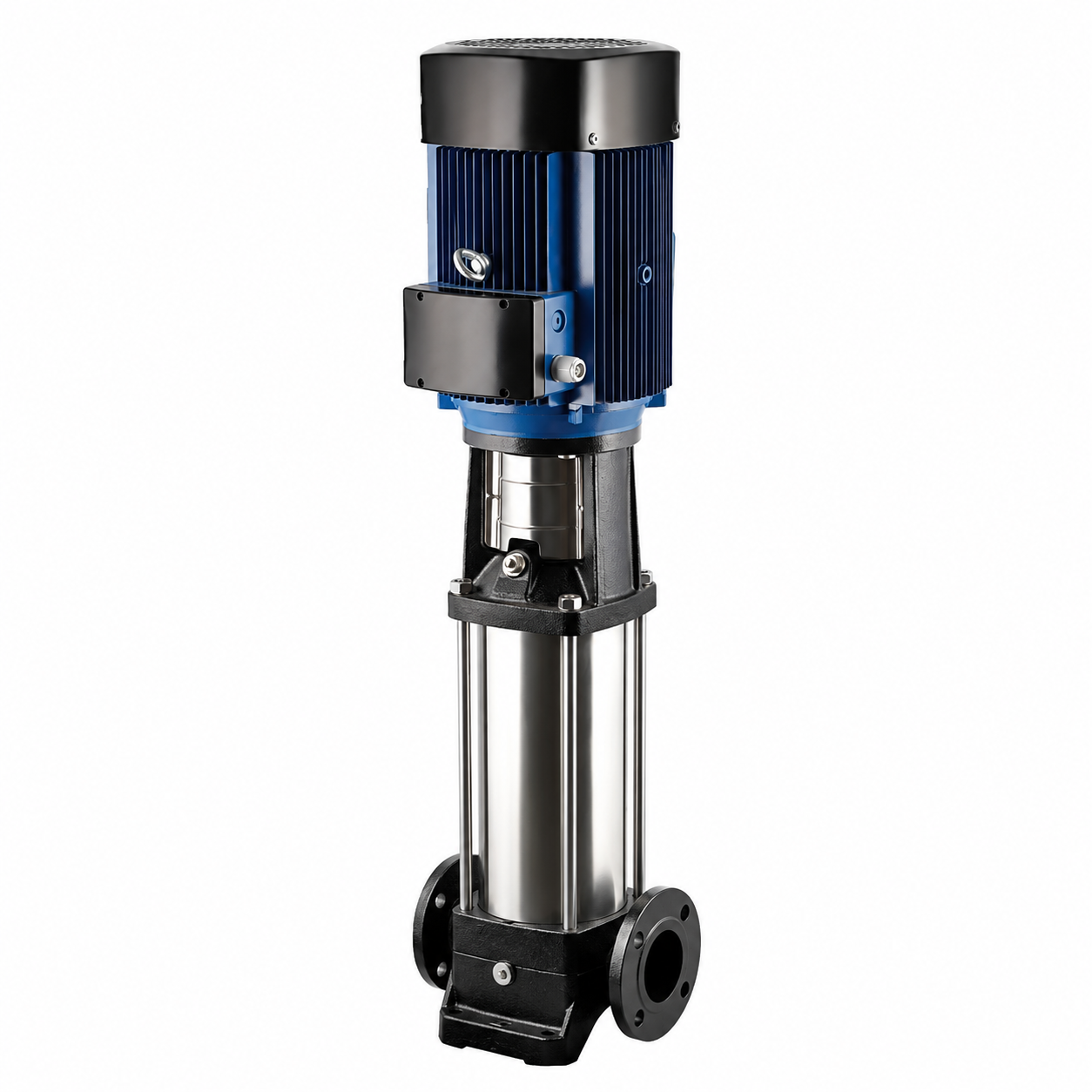

CDL(F)2–20 Light Vertical Multi-stage Centrifugal PumpsThe CDL(F)2–20 range has a small, vertical, multi-stage design for moving clean water and increasing pressure in small to medium-sized systems. This design is good for applications that need stable pressure and a structure that doesn’t take up much space, like providing water to buildings, boosting pressure in businesses, helping with water treatment, and more. The flow range, as listed in the catalogue, is from 2 m³/h to 20 m³/h, with a range of 0.28 m³/h to 28 m³/h. The maximum pressure is between 21 bar and 23 bar, the flange sizes are between DN25 and DN50, and the motor power is between 0.37 kW and 18.5 kW.
CDL(F)32–90 Light Vertical Multi-stage Centrifugal PumpsThere is a vertical multi-stage centrifugal structure in the CDL(F)32–90 range as well, but it is made for bigger water supply and pressure boosting jobs. This design works well for bigger building systems, industrial water supply, circulation systems, and other jobs that need a steady flow of water. The catalogue lists the recommended flow range as 32 m³/h to 90 m³/h, the actual flow range as 4.4 m³/h to 122 m³/h, the maximum pressure as 17 bar to 30 bar, the flange sizes as DN65 to DN100, and the motor power as 1.5 kW to 45 kW.

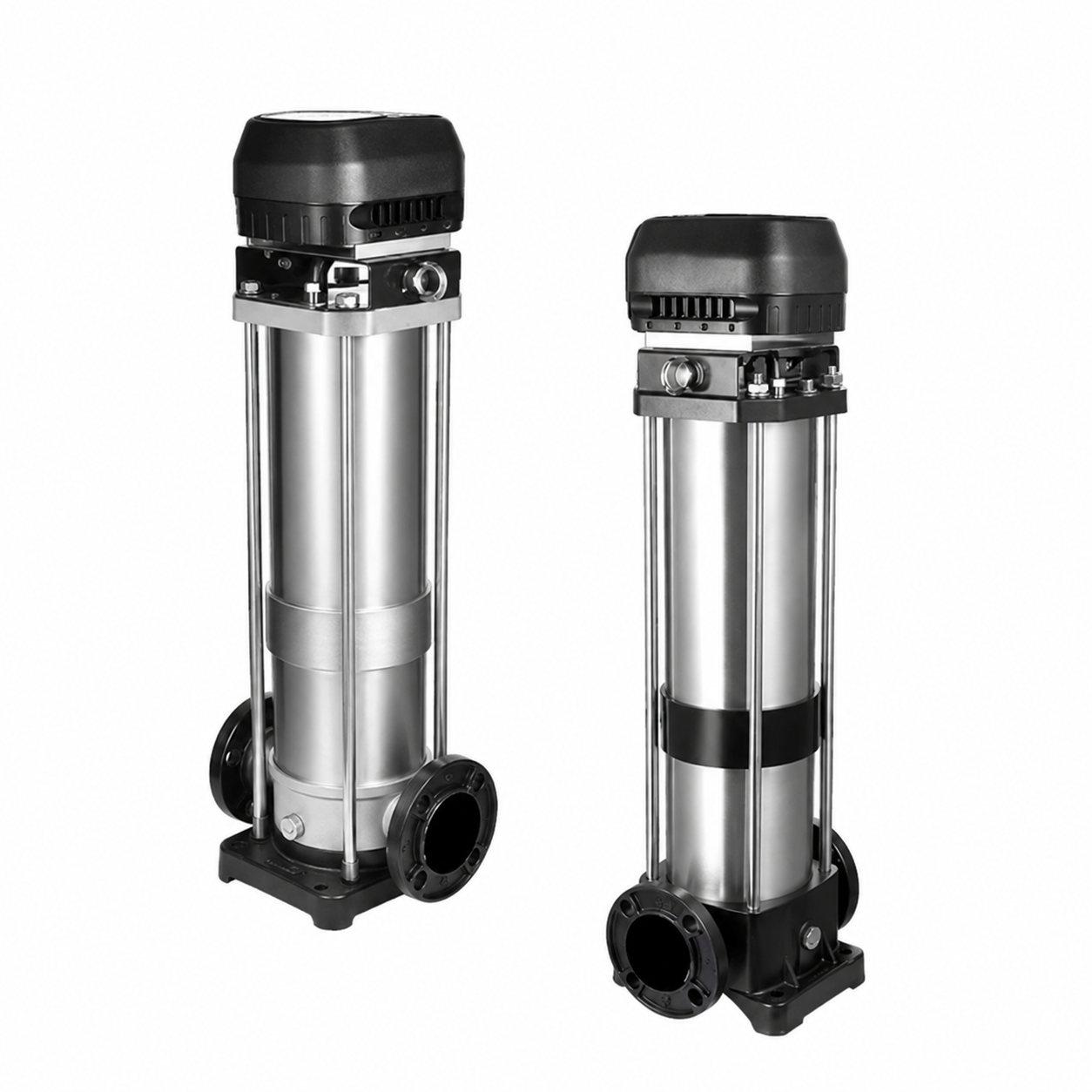

YCNCDL(F) Series Permanent Magnet Built-in Vertical Multi-stage Centrifugal PumpsYCNCDL(F) Series pumps offer more accurate operation management thanks to their built-in permanent magnet motor and intelligent variable frequency control, as well as their vertical multi-stage centrifugal structure. It can change its running speed instantly based on the amount of water that is needed. This helps keep the pressure stable, cuts down on energy use, and supports applications that need smart water supply control.
Why Choose HunGerät as Your Multistage Centrifugal Pump Factory
HunGerät has been making pumps for 25 years. During that time, we’ve learned how to make centrifugal pumps, improve models, keep track of production, and manage quality. With this background in production, you can get Multistage Centrifugal Pumps that work consistently, are of good quality, and have a steady supply for long-term partnerships.
HunGerät has a range of Multistage Centrifugal Pump options, such as permanent magnet vertical multi-stage models and vertical multi-stage models with more than one stage. These models meet a range of needs in terms of flow rate, head, power, and mounting conditions. You can choose the right pump for water supply, pressure boosting, circulation, and industrial uses from a number of different models.
Batch production, pump assembly, performance testing, stock preparation, and container loading can all be done in the 25,000 m² factory area. This production capability helps keep shipping schedules more stable and supports repeat orders, project needs, and planning for Multistage Centrifugal Pump supply inventory.
HunGerät uses quality checks at several important stages of production, such as inspecting arriving materials, inspecting completed assemblies, testing performance, and reviewing the finished product. Before they are sent out, this process helps make sure that every batch of Multistage Centrifugal Pumps meets the same quality standards.
OEMs can change things about Multistage Centrifugal Pumps from HunGerät, such as the labels, colours, packaging, voltage, frequency, and product configurations. With these choices, you can change pump products to fit different market standards, installation needs, and customer tastes.

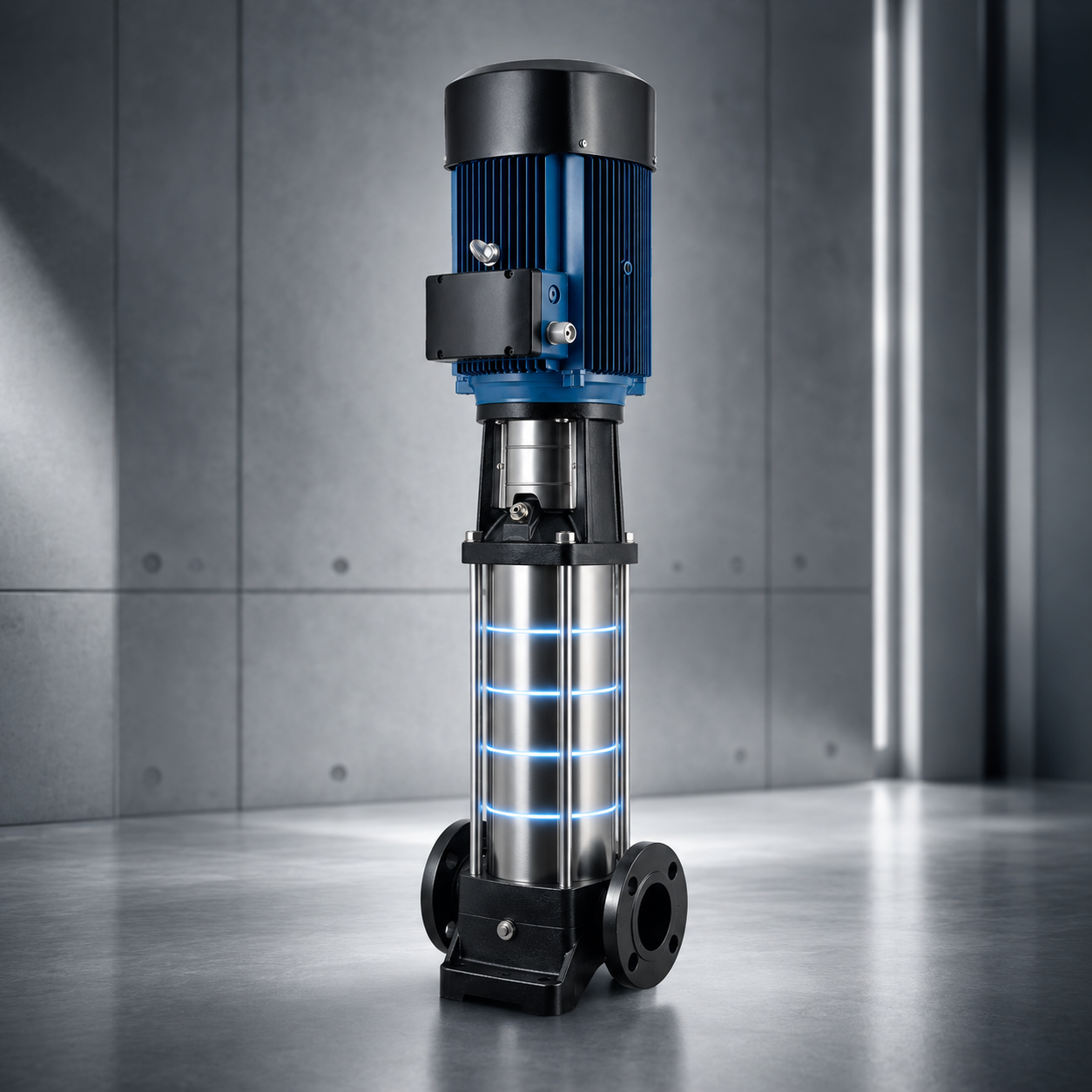

Vertical Multi-stage Design for Higher Pressure in Compact Structure
The vertical multi-stage structure of HunGerät Multistage Centrifugal Pumps fits many rotor stages into a small pump body. This design makes it possible for the pump to deliver higher head pressures while taking up less installation space. It can be used for water supply in buildings, increasing pressures, industrial circulation, and other applications that need stable high-pressure water delivery.
Multiple Impeller Stages for Flexible Head Selection
Different combinations of impeller stages are used in the CDL(F) series to give a wide range of head performance to meet the needs of different systems. These pumps come in a range of types with different flow and head rates, so they can be used in a wide range of situations where stable pressure output is needed, from low-rise water systems to higher-head water supply projects.
Optimized Hydraulic Components for Efficient Water Transfer
HunGerät Vertical Multi-stage Centrifugal Pumps are made with multi-stage impeller structures and optimised hydraulic pathways to make moving water more efficient. The well-balanced hydraulic design helps keep energy loss to a minimum while keeping flow stable for applications that need to keep water moving and boost pressure.

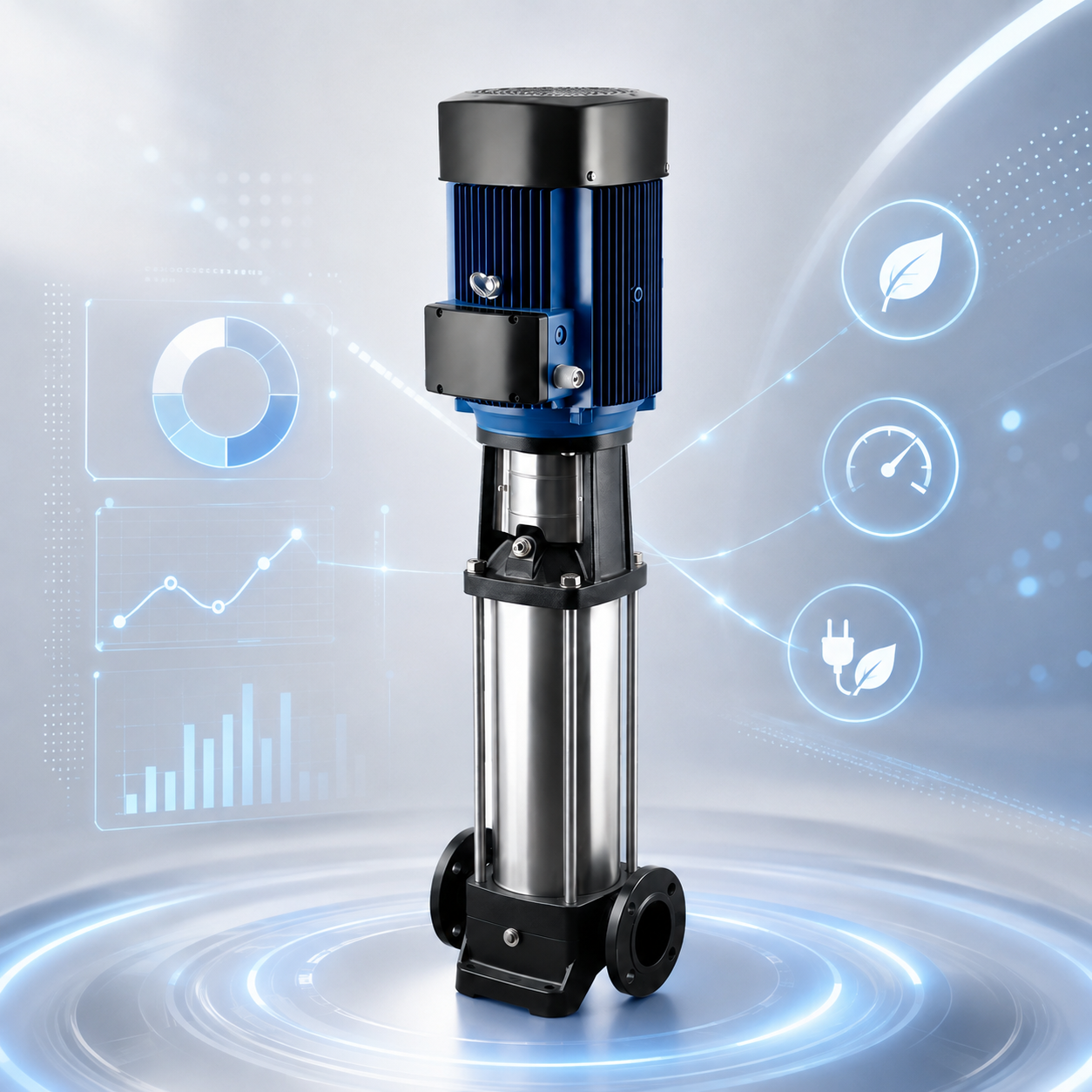

Permanent Magnet Motor for Intelligent Pressure Control
There is a permanent magnet synchronous motor and smart variable frequency control built into the YCNCDL(F) model, along with a vertical multi-stage centrifugal structure. The operating speed of this system can be changed instantly based on the demand for water. This helps keep the pressure stable, saves energy, and allows for more accurate system control.
Stainless Steel Flow Components for Reliable Long-Term Operation
The water-contacting parts of some types of HunGerät Multistage Centrifugal Pumps are made of stainless steel, which makes them more resistant to corrosion and last longer. The strong construction helps keep working reliably in clean water systems, industrial water systems, and other places where a long life is needed.
Your Reliable Factory for Multistage Centrifugal Pumps
HunGerät focuses on standardising production control from cleaning parts to putting pumps together, testing their performance, and doing a final check to make sure that all batches of Multistage Centrifugal Pumps meet the same standards. During production, we check important steps like how well the parts fit together, how well the pump works, and the quality of the finished product. This way, you can be sure that you’ll get stable-quality pumps for future orders and different water system projects.
HunGerät has been making pumps for 25 years and has built up the skills to handle batch production, inventory preparation, assembly management, and container orders. Our team can help you with product confirmation, technical communication, quotes, and order updates. This will make it easier for you to handle your Multistage Centrifugal Pump purchases, from choosing the model to receiving the final delivery.
Multistage Centrifugal Pump Application Areas

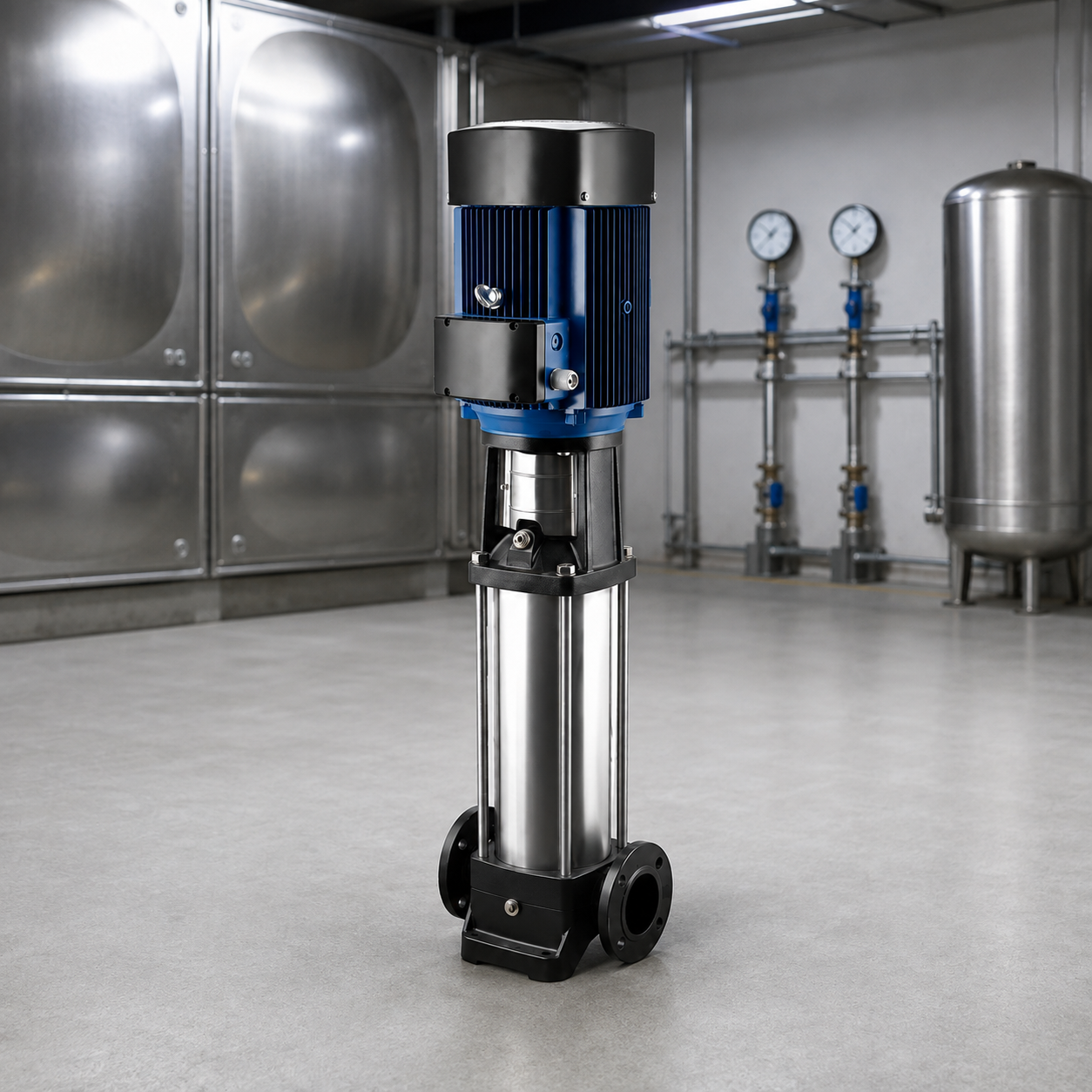

Stable water pressure is needed for business buildings and high-rise buildings to get water to all floors and areas that need it quickly. Multistage centrifugal pumps have higher head performance because they have more than one impeller stage. This helps keep the water supply steady and raises the pressure in building water systems.

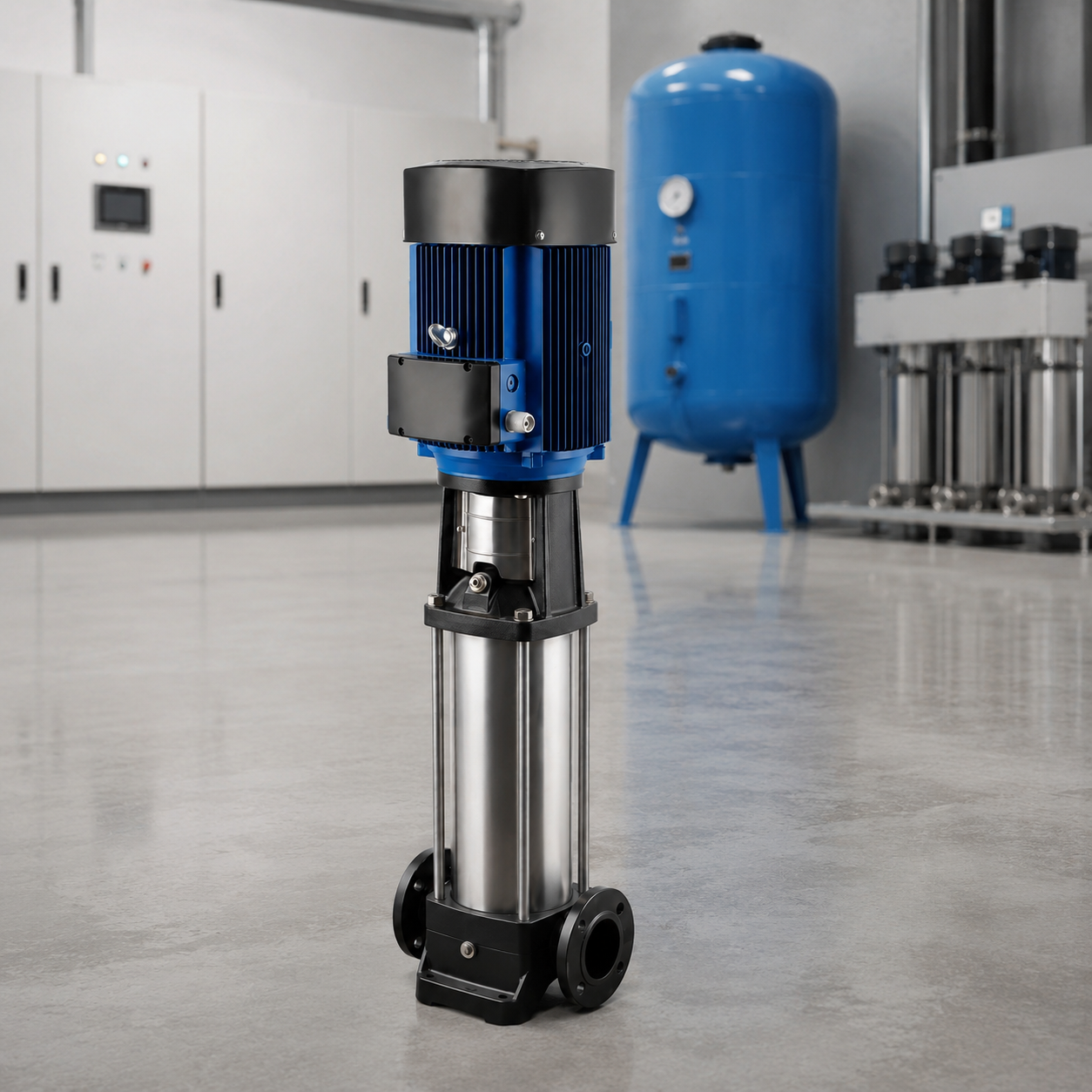

Pressure-boosting equipment needs to have stable output while it’s working when the water pressure in the system isn’t enough. Increase water flow in homes, businesses, and factories that need reliable high-head performance with multistage centrifugal pumps.

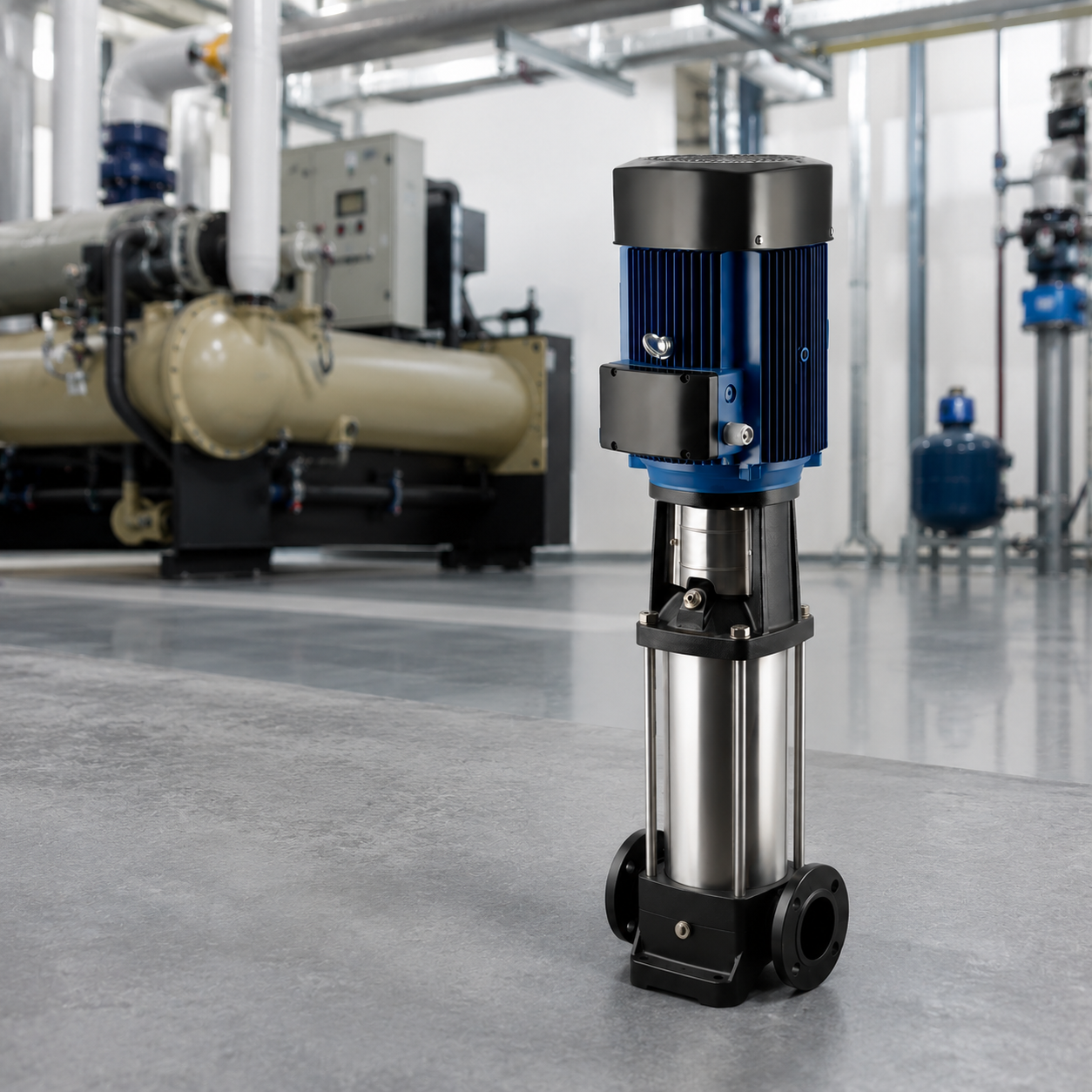

To keep the temperature stable, heating and cooling devices need to keep moving fluids around. When more pressure needs to be put out and the flow needs to stay steady, multistage centrifugal pumps can help move hot water, chilled water, and circulation fluids in HVAC systems.

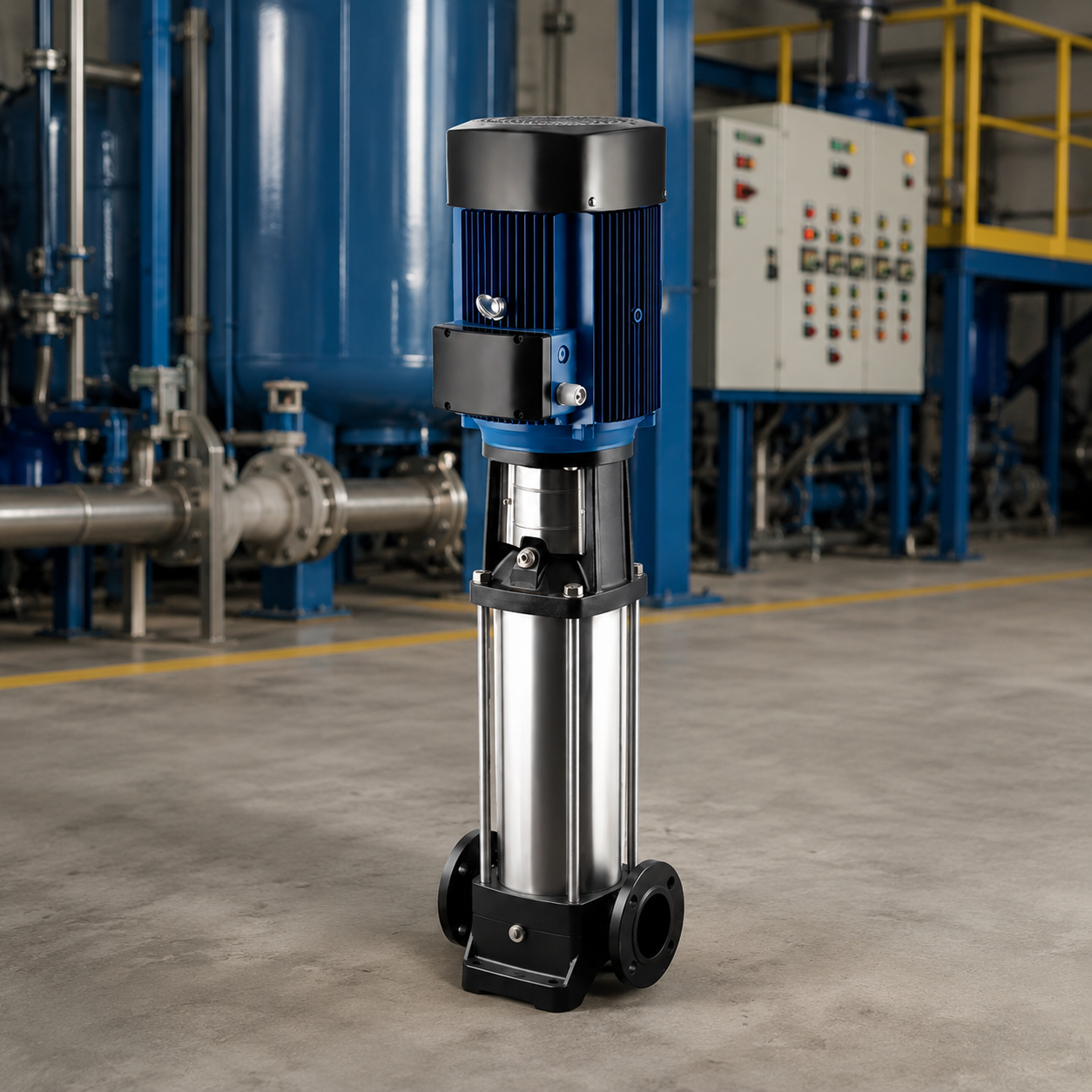

For production, equipment function, and utility systems, industrial facilities need to be able to reliably move water. For industrial uses that need higher head and long-term operation, multistage centrifugal pumps deliver water continuously and with stable pressure.

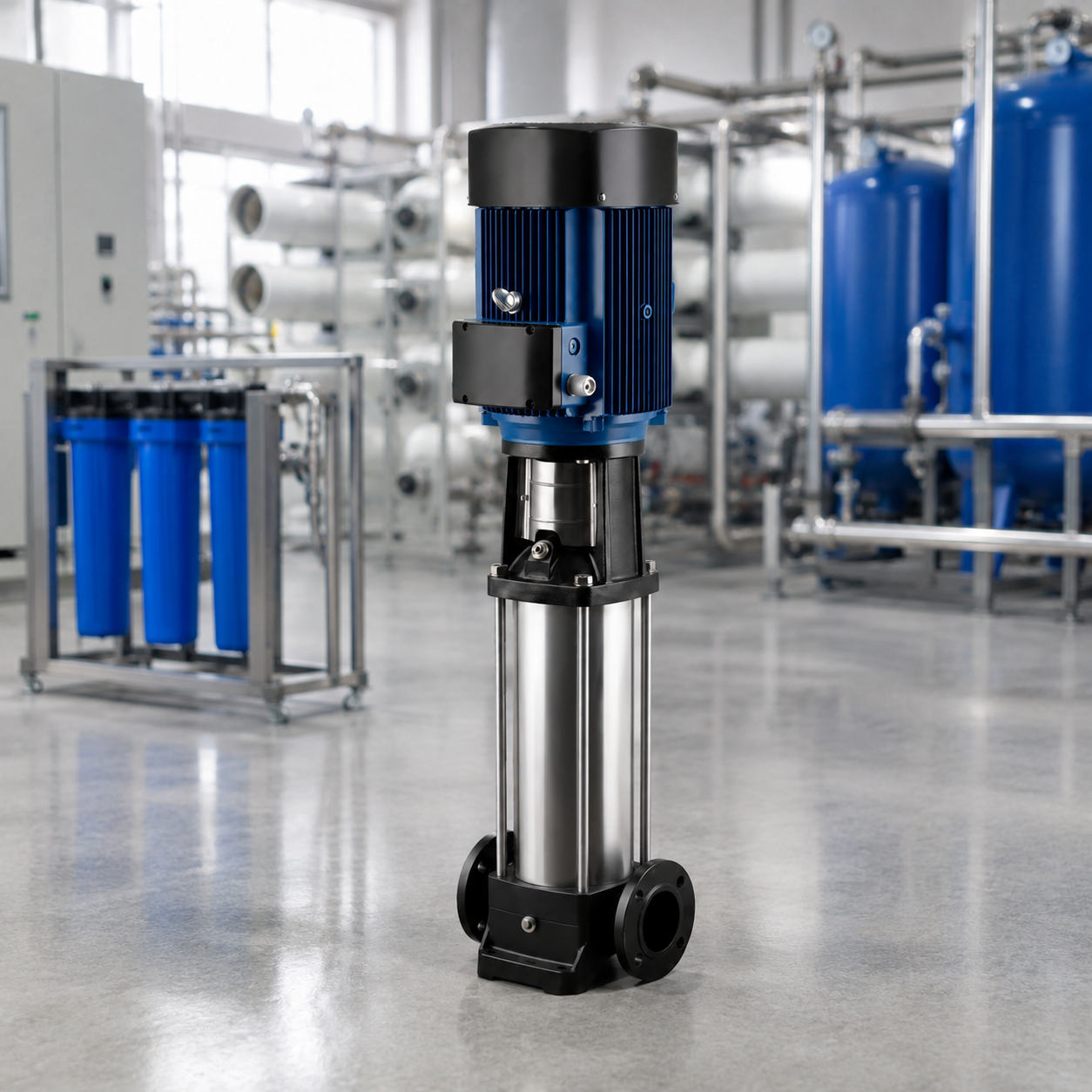

For filtration, cleansing, and circulation processes, water treatment equipment often needs pumps that can keep the pressure stable. These systems depend on multistage centrifugal pumps to keep the pressure steady and the water moving smoothly.

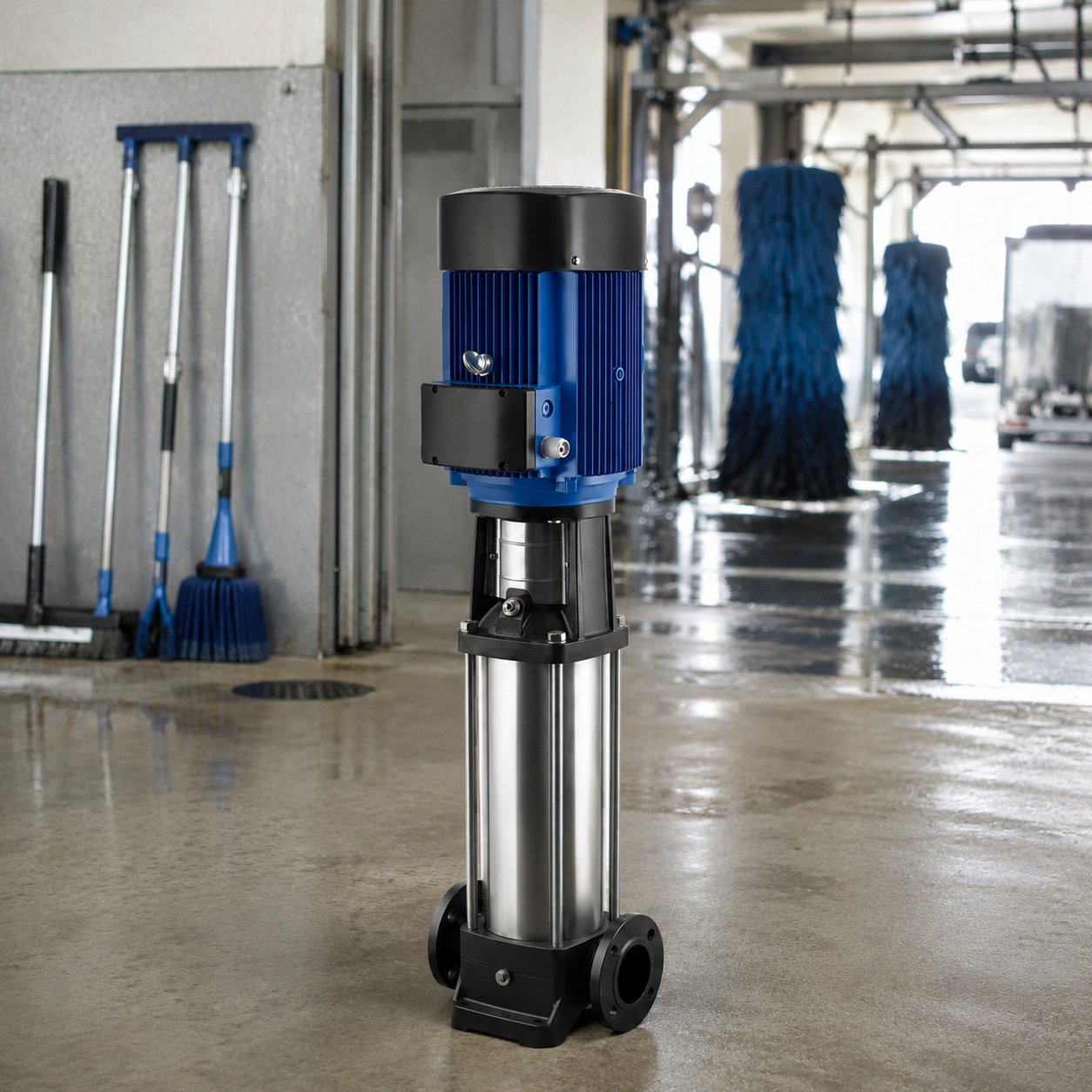

Stable water pressure is needed for industrial cleaning systems and high-pressure washing tools to keep cleaning. Multistage centrifugal pumps can handle high pressures and are useful in situations where stable and constant water supply is needed.
The number of stages needed is mostly based on the total head. Each propeller stage adds a certain amount of pressure. For instance, a pump that needs 60 m head might need between 4 and 6 stages, while a system that needs 120 m head might need between 8 and 12 stages.To make sure stable performance, the final choice should also take into account operating conditions, flow rate, and pipeline loss.
The right flow range depends on the job, but most Multistage Centrifugal Pumps can handle flows from about 1 m³/h to over 100 m³/h. Most of the time, the best operating flow is close to the pump’s rated working point to keep it running efficiently and steadily.
The pressure of the pump is tied to the head that is created. For example, 10 meters of head is equal to 1 bar of pressure. For instance, a pump with an 80-meter head can produce about 8 bar of pressure when the water is perfect.
When the pressure and flow needs are right for the pump, a multistage centrifugal pump can be used as the main pump in a lot of boosting systems. It can also be put together with a pressure controller or a variable frequency drive to automatically change the amount of water needed.
Required flow rate, total head, liquid type, temperature, voltage, installation method, and operating hours are some of the main selection data. By giving these details, you can avoid picking a pump that is too big, too small, or working outside of its optimal range.
The formula P = ρ × g × Q × H ÷ · can be used to measure motor power, which is based on flow rate, head, liquid density, and pump efficiency. For instance, if the flow rate goes up or the head goes from 50 m to 100 m, the motor will need a lot more power.
Yes, Multistage Centrifugal Pumps are often chosen for water supply systems in high-rise buildings because they can provide the pressure needed to lift the water up and down. Because of elevation losses, a 20-story building might need a pump with a much bigger head than a low-rise building.
Most of the time, a vertical multistage centrifugal pump takes up less space and is easier to fit into small mechanical rooms. When the layout of the system calls for easy access or different ways to arrange the pipes, horizontal designs may be better.
The highest temperature is determined by the type of motor insulation, the materials used in the pump, and the design of the mechanical seal. For water temperatures between 60°C and 90°C, standard clean water models are usually used. For higher temperatures, however, special versions are needed.
Yes, when the seal materials, casing materials, and motor specs are right, a multistage centrifugal pump can handle hot water uses. The model that is chosen should match the real temperature of the liquid and the conditions of ongoing operation.
Depending on the quality of the motor, the operating load, the water temperature, and the level of maintenance, a Multistage Centrifugal Pump that has been properly chosen can usually run nonstop for 8,000 to 20,000 hours in the right conditions. Checking the mechanical seals, bearings, and electrical parts every three to six months helps keep the machine running smoothly over time.
Pressure loss can happen if the wrong model is chosen, if air gets into the suction line, if the pipes get clogged, if the hydraulic parts wear out, or if the machine is used outside of the suggested range. Finding the cause is easier when you look at the actual flow, the condition of the inlet, and the system resistance.
If the amount of water needed changes often, a variable speed Multistage Centrifugal Pump can cut energy use by 20% to 60% compared to a fixed-speed pump. For instance, lowering the speed of a pump to 80% can cut its power use by about 51%, since pump power changes roughly with the cube of speed.
Depending on the type and the needs of the market, common motor voltage ranges from 220V to 240V single phase and from 380V to 415V three phase. OEM voltage customisation is also possible for electrical standards in different parts of the world.
No, a Multistage Centrifugal Pump shouldn’t run without enough liquid because it can damage the seals and parts inside. For long-term use, it is best to have a good water source and safety devices.
As part of regular maintenance, noise, vibration, leaks, electrical connections, and operating pressure are all checked. Depending on the working conditions, pumps that are always on should usually be inspected every three to six months.
The necessary water speed, flow rate, and pump inlet/outlet width determine the pipe size that is best. Some examples of pipe sizes used by pumps are 25–40 mm for a 2–5 m³/h flow rate and 50–80 mm for a 10–20 m³/h flow rate in larger systems to keep the pressure from dropping.
Yes, a Multistage Centrifugal Pump can be used with solar-powered water systems as long as the power source, inverter, and pump motor specs are all right. The pump power, daily water demand, and available sun radiation should all be taken into account when designing the system.
If you use the right-sized pressure tank, controller, or variable frequency drive system, you can cut down on how often the system cycles. Choosing the right pump size based on how much water is actually needed also helps keep things running smoothly.
The right model depends on the flow rate, head, liquid conditions, available space for installation, and control needs. Most of the time, a professional recommendation needs to know the pump curve, operating point, and system information in order to match the pump properly.
How to Pick the Right Multistage Centrifugal Pump for Your System
You need to know the flow rate and head needs of your system before you can choose the right Multistage Centrifugal Pump. First, figure out how much water is needed and how high it needs to be based on the lifting height, the resistance of the pipeline, the pressure that needs to be applied, and the operating conditions. For instance, if a system needs a 60-meter head, you should choose a pump with an estimated head higher than 60 meters to account for pressure drops and keep the flow of water steady.
Before you choose a pump, you should also think about the quality of the water, the working temperature, the space where it will go, the motor’s power, and the control needs. Multistage Centrifugal Pumps are good for situations that need more pressure because they have more impeller stages, which can improve head performance compared to single-stage designs. If you tell us the flow rate, head, liquid conditions, and working setting you need, we can help you choose the right Multistage Centrifugal Pump.
